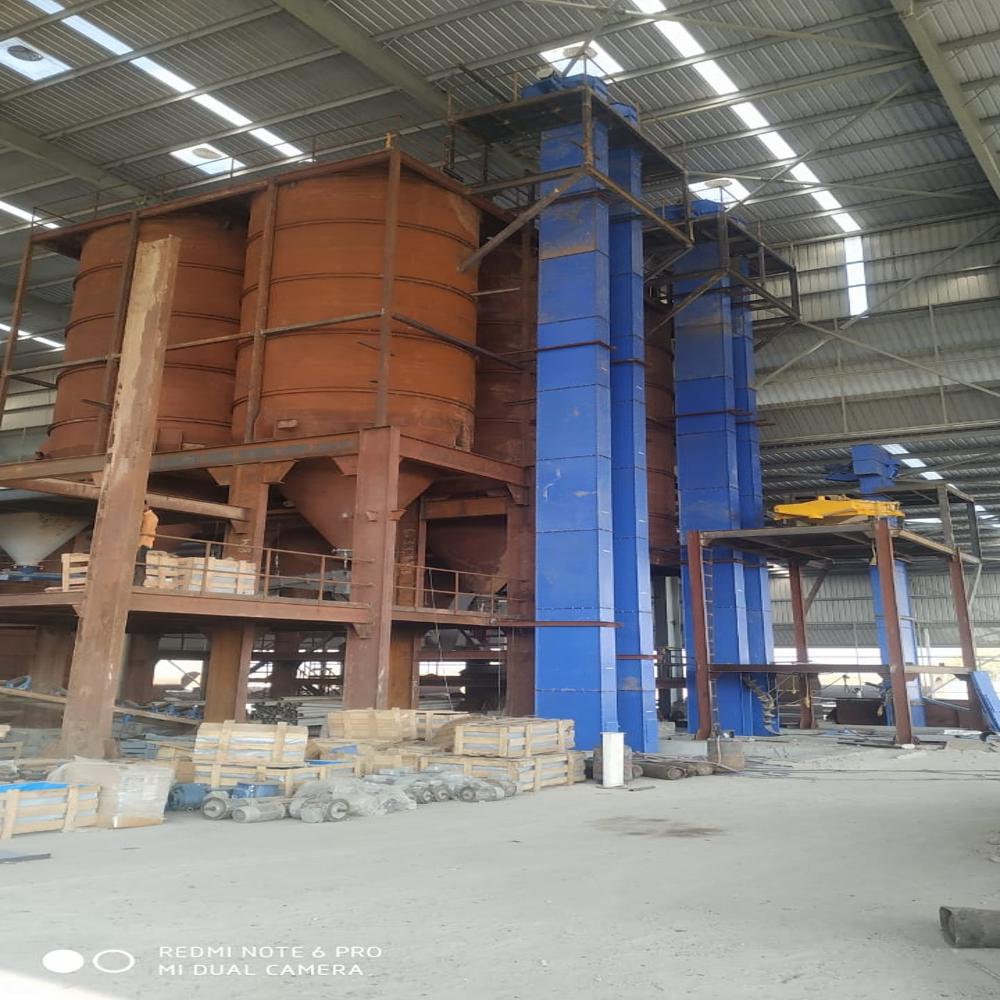

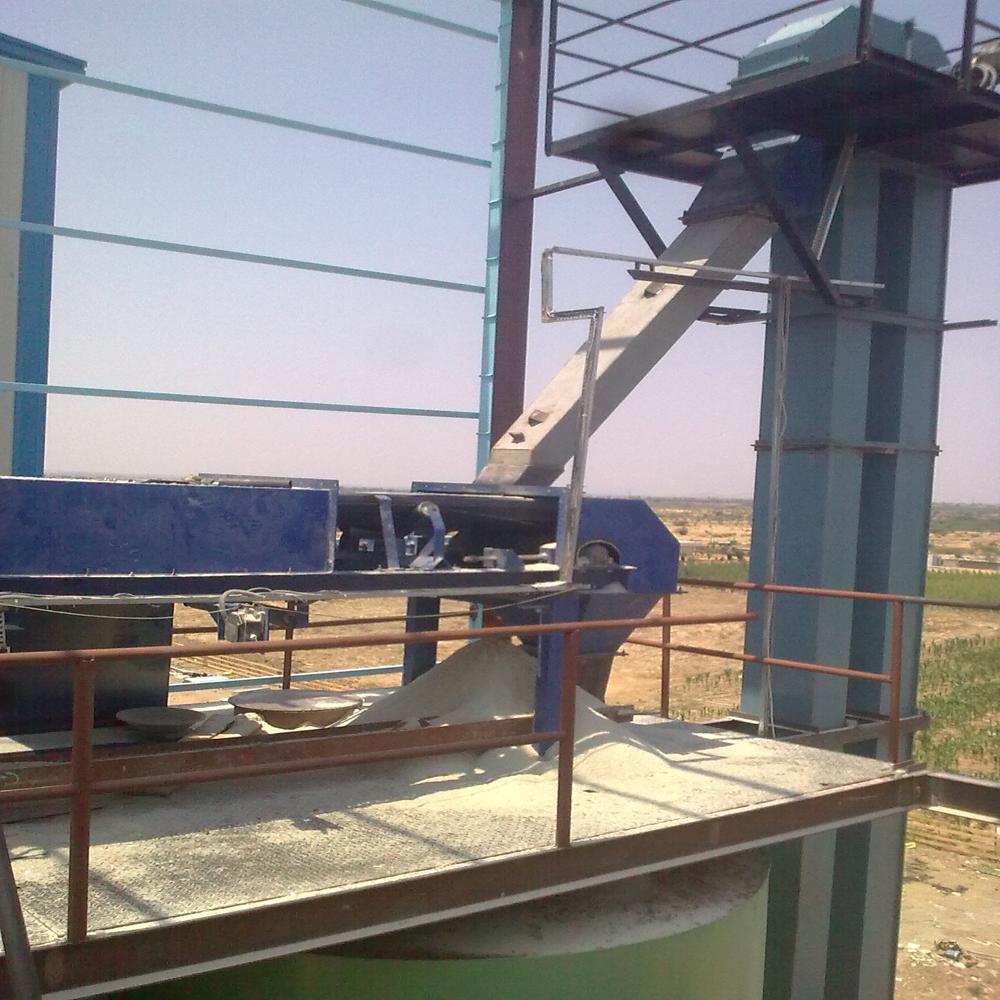

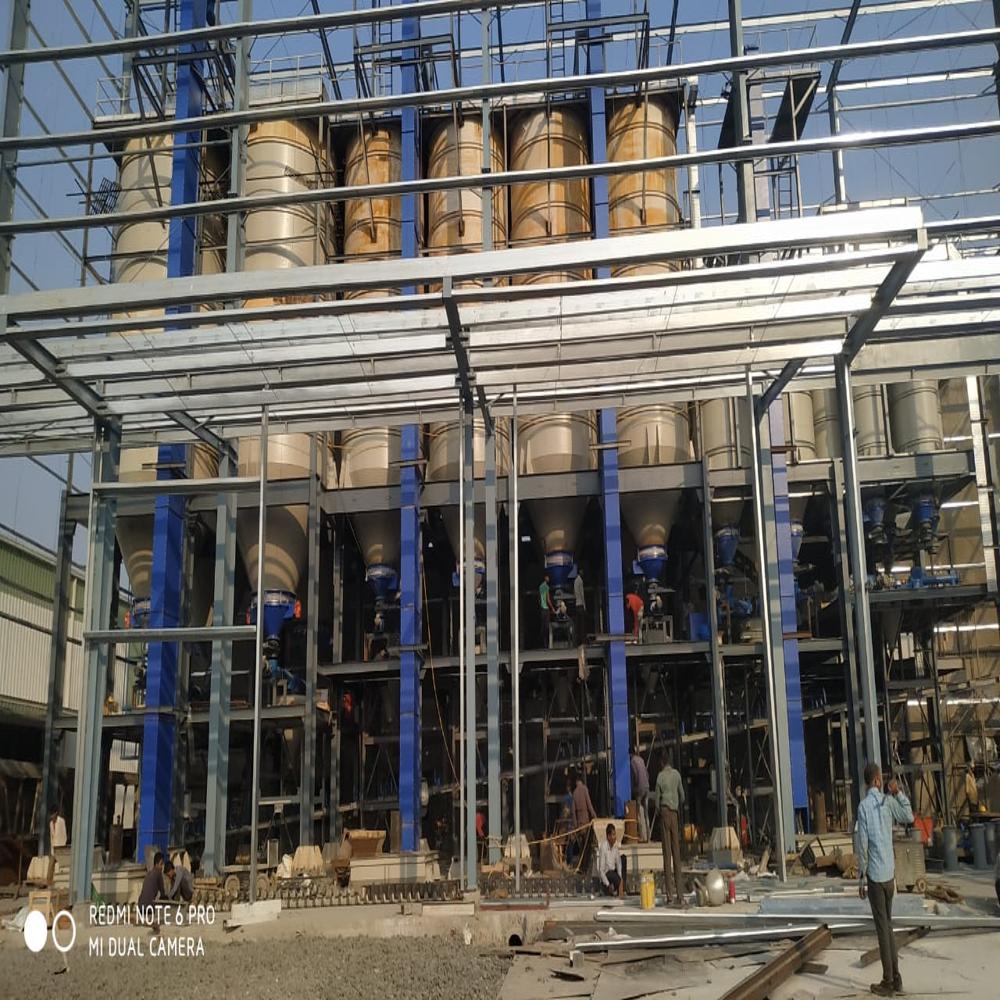

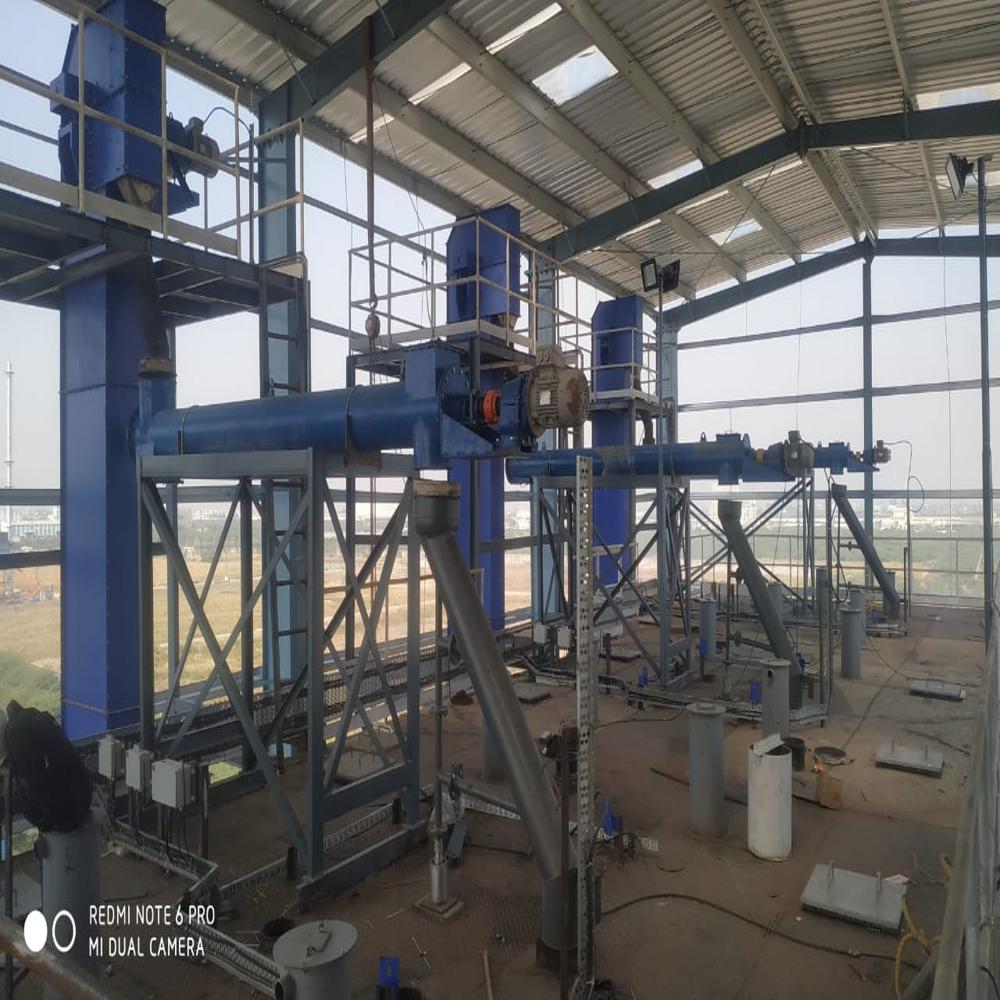

Bucket Elevator

About Bucket Elevator

A Bucket Elevator is a vertically oriented material-handling system designed to transport bulk materials efficiently and reliably between different height levels. Using a series of evenly spaced buckets attached to a belt or chain, the elevator continuously scoops, lifts, and discharges materials with minimal spillage and high throughput capacity.

Key Functions

• Vertical Lifting: Moves materials vertically, often from ground level to storage silos, hoppers, or processing equipment.

• Controlled Discharge: Ensures accurate and consistent unloading, typically using centrifugal or gravity discharge methods.

• Continuous Operation: Ideal for high-volume, repetitive transport in industrial environments.

Typical Materials Handled

• Grains, seeds, and agricultural products

• Cement, sand, and aggregates

• Fertilizers and chemicals

• Minerals and ores

• Food products like sugar, flour, and rice

Main Components

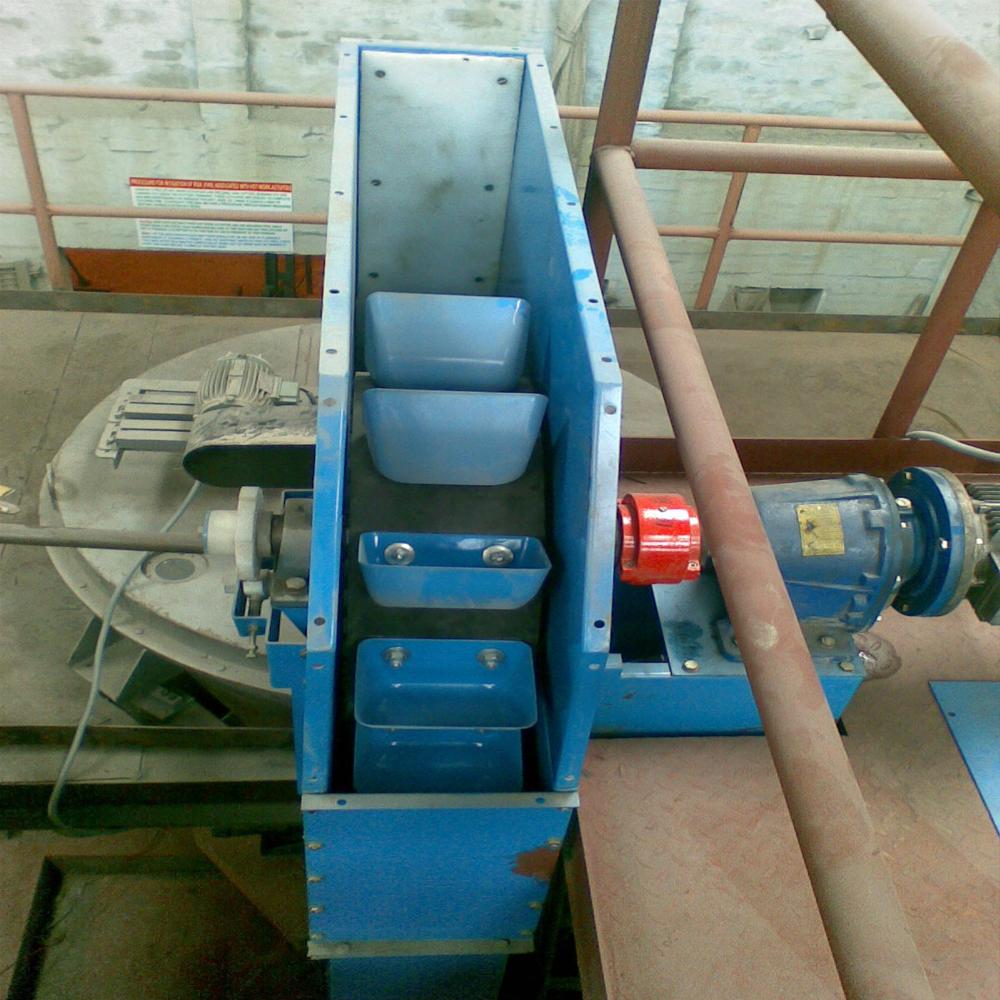

• Buckets: Made from steel, plastic, or polyurethane; designed for durability and specific material properties.

• Belt or Chain: Drives the buckets upward; belts provide quiet, smooth operation while chains offer heavy-duty performance.

• Head Section: Contains the drive mechanism, discharge chute, and pulley or sprocket.

• Boot Section: Houses the inlet for material loading and features the take-up mechanism for belt/chain tensioning.

• Casing: Encloses the elevator to protect material from contamination and reduce dust emission.

Key Features & Benefits

• High Efficiency: Capable of handling large capacities at minimal power consumption.

• Space-Saving Design: Vertical lifting reduces floor space requirements.

• Low Maintenance: Robust construction with minimal moving parts.

• Versatile Configurations: Available in centrifugal, continuous, and positive discharge designs to suit different material types.

• Dust-Control Friendly: Fully enclosed casing reduces dust generation and improves workplace safety.

Applications

• Agriculture and grain storage systems

• Cement plants and building-material production

• Mining and mineral processing

• Food and beverage manufacturing

• Chemical and fertilizer industries
